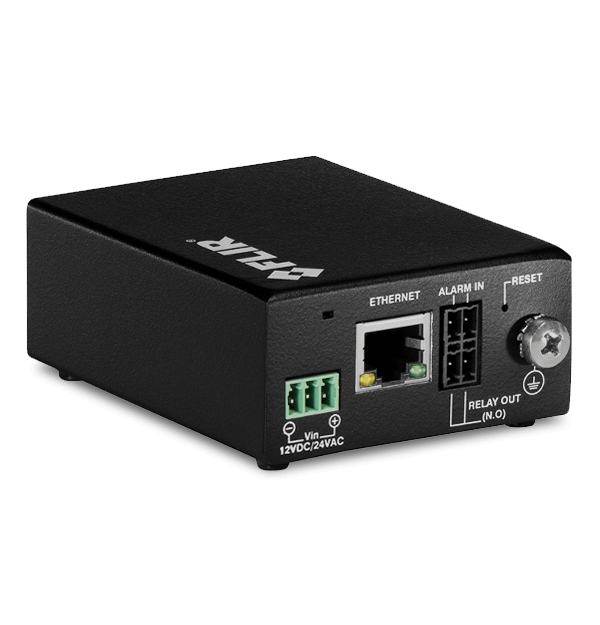

TRK-101
Analytics Encoder
The TRK-101 analyzes video signals and sends alarm notifications when people, vehicles and objects cross perimeter lines, enter pre-defined regions, or are left behind or removed from a scene. Users can define perimeters and customize what to detect. The TRK-101 has both analog and IP streaming video outputs that enable hybrid connectivity to both legacy and IP-based CCTV networks. The encoder also integrates with existing fixed analog cameras for retrofit of existing installations.
Specifications
| Compliance & Certifications | |
|---|---|
| Safety | UL, CE |
| Environmental | |
|---|---|
| Electromagnetic Interference | (EMC) FCC 47 CFR Part 15, Subpart B, Class A; CE Class A |
| Environmental | RoHS |
| Operating Humidity | 5% to 95% (non-condensing) |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| General | |
|---|---|
| Dimensions [inches] | 2.7 x 1.42 x 4.61" (W x H x D) |
| Dimensions [mm] | 68.5 x 36 x 118mm (W x H x D) |
| H.264 Frame Rate [PAL_NTSC] | D1 12/15 FPS VGA 18 FPS 2CIF 25/30 FPS CIF 25/30 FPS |
| Mounting | Shelf/optional rack-mounting (single-unit or multiple-unit accessory) |
| Number of Intelligent Video Analysis Channels | 1 |
| Operating System | Windows 7, 8 and 8.1, 10 |
| Power Consumption | DC: 3.6W, AC: 6W |
| Storage on the Edge | 3,800Mb event recording |
| Voltage | 12VDC (+/-10%), 24VAC |
| System Integration | |
|---|---|
| Alarms_Commands | TCP/IP, HTTP |
| Browsers | Microsoft Edge in IE mode (Microsoft will support IE mode in Edge at least until 2029) |
| Ethernet [IEEE 8023_8023u] | 1 x RJ45 interface |
| IN_Alarm Input | 1x dry contact |
| OUT_Relay Output | 1x relay output (rated load 0.3A@12VDC; 1A@30VDC; 0.25A@24VAC, 50/60Hz) |
| Physical Connector | 1x BNC 75Ω |
| Services and Protocols | TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
| TV Standard | Composite 1Vp-p – NTSC or PAL |
| Video & Recording | |
|---|---|
| Bit Rate | CBR (128Kbps – 4Mbps), VBR |
| IP Video Streaming | H.264, MPEG-4 SP, MJPEG |
| Video Streaming | RTP/RTSP |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Firmware Download
ioi SD H.264 (v.2.3.0.2, 28-Nov-2017)
Software Download
FLIR DNA Software - Version 2.3.0.35
User Manual
FLIR TRK-101 Installation Manual
User Manual
FLIR ioi HTML Edition Units User Guide
Software Release Note
FLIR Discovery Network Assistant (DNA) Software Release Note v2.3.0.35
Compatibility
FLIR Security Cameras & Encoders - Supported 3rd Party Platforms
Selection Guide
FLIR Security Product Matrix Selection Guide
Selection Guide
FLIR Edge Devices Accessory Guide
Software Firmware Release Note
FLIR IOI-SD Firmware Release Notes v2.3.0.2
Application Story
Data Center Security: Protecting the Perimeter and Critical Assets
Datasheet
FLIR ioi TRK-101 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
