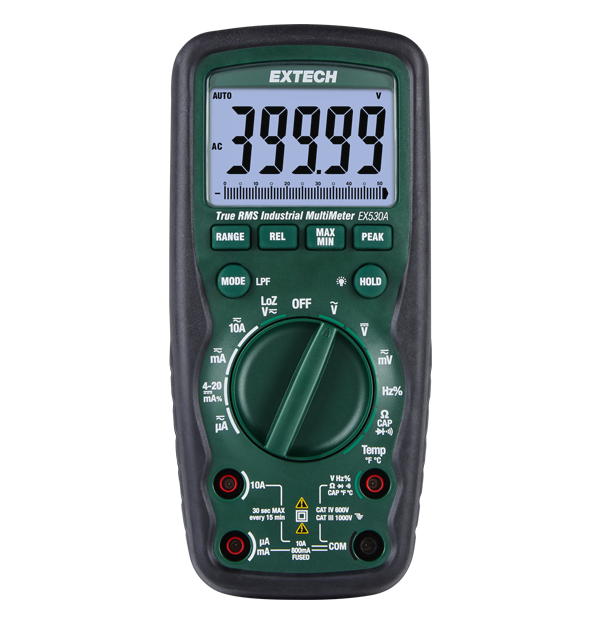

Extech EX530A

Heavy Duty True RMS Industrial Multimeter

199,00 € ex. VAT
238,80 € inc. approx. VAT (20 %)
Product Variations

The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions. Comes complete with double-molded test leads, type K thermocouple -45°C to 760°C (-50°F to 1400°F), bead wire temperature probe -20°C to 250°C (-4°F to 482°F), magnetic hanging strap, case, and a 9 V battery.

True RMS DMM with 50,000 count large LCD screen, temperature function, and waterproof housing.
AC/DC voltage & current, resistance, capacitance, frequency, temperature, duty cycle, and diode/continuity.
Complete with double molded test leads, magnetic hanging strap, Type K thermocouple, bead wire temperature probe, carrying case, and 9 V battery.

Specifications

General
AC Current 0.1 µA to 10 A
AC Voltage 1 mV to 1000 V
Capacitance 0.01 nF to 99.99 mF
Continuity Yes
DC Current 0.1 µA to 10 A
DC Voltage 0.1 mV to 1000 V
Duty Cycle 0.1 to 99.9%
Frequency Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz
Resistance 0.01 Ω to 50 MΩ
Temperature [Type K] Max Resolution -45°C to 760°C (-50°F to 1400°F)
True RMS Yes
Additional Details
Certifications CE, UL
Dimensions 183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in)
Display 50,000-count segment LCD
IP Rating IP67
Power 1 × 9 V battery
Safety Category CAT IV-600 V
Warranty 3 years
Weight 380 g (13.4 oz)

Resources & Support

Quick Start Guide

Extech EX530A Quick Start Guide

Datasheet

Extech EX5xxA Series Datasheet

User Manual

Extech EX530A User Manual

Datasheet

Extech EX5xxA Series Datasheet GB
