Discontinued

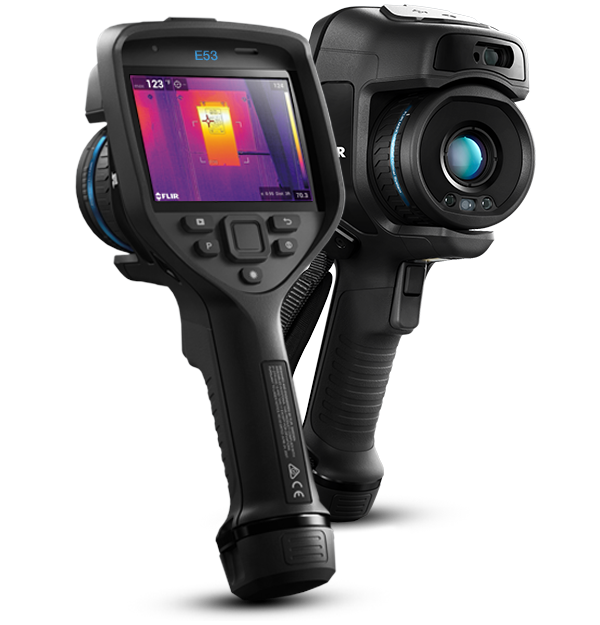

FLIR E53

LIMITED AVAILABILITY

Product Variations

The FLIR E53 is your entry into the Exx-Series, with the resolution and sensitivity you need at the right price. The 240 × 180 true native resolution offers more than 43,200 points of temperature measurement and produces crisp, vibrant imagery, which can be enhanced with FLIR's patented MSX® for added perspective.

Reimagined from the handle up
The E53's spot-size ratio allows you to take the most accurate temperature readings on smaller targets, at farther distances.
The E53 measures up to 650°C (1200°F), offers 3 spotmeters and displays the max/min temperature within an area live, on-screen.
Customizable work folders, a built-in mic for voice annotation, and report generation features all help the E53 streamline your workday.

Specifications

Highlighted
IR Resolution 240 × 180 (43,200 pixels)
Accuracy ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Field of view [FOV] 24° × 18°
Digital Camera 5 MP, 53° × 41° FOV
Image Modes Infrared, visual, MSX®, Picture-in-Picture
Display 4°, 640 × 480 pixel touch screen LCD with auto-rotation
Storage Media Removable SD card
Imaging & Optical
Color palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type Uncooled microbolometer, 17µm
Digital Camera 5 MP, 53° × 41° FOV
Digital Zoom 1-4x continuous
f number f/1.3
Field of view [FOV] 24° × 18°
Focus Manual
Image Fequency 30 Hz
Image Modes Infrared, visual, MSX®, Picture-in-Picture
IR Resolution 240 × 180 (43,200 pixels)
MSX Embosses visual details on full resolution thermal image
Non_radiometric IR video streaming H.264 or MPEG-4 over Wi-Fi; MJPEG over UVC or Wi-Fi
Picture_in_Picture Centered infrared area on the visual image
Radiometric IR video recording Real-time radiometric recording (.csq)
Radiometric IR video streaming Over UVC
Screen EST Mode Yes
Spectral Range 7.5 – 14.0 µm
Weight [incl lens] 1 kg (2.2 lbs)
Measurement & Analysis
Accuracy ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Accuracy [Drift] in Screen EST Mode Accuracy (drift): ±0.3°C (±0.5°F)
Area Box 1 in live mode
Color alarm [isotherm] Above, below, interval, condensation, insulation
Measurement Presets No measurement, center spot, hot spot, cold spot, 3 spots, hot spot-spot
Object Temperature Range -20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1200°F)
Sampling Average in Screen EST Mode Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
Spot Meter 3 in live mode
Thermal Sensitivity <0.04°C at 30°C (86°F), 24° lens
User Interface
Display 4°, 640 × 480 pixel touch screen LCD with auto-rotation
Communication & Data Storage
Communication Interfaces USB 2.0, Bluetooth, Wi-Fi, DisplayPort
Image File Format Standard JPEG with measurement data included
METERLiNK Yes; several readings
Storage Media Removable SD card
Video Out DisplayPort over USB Type-C
Power
Battery operating time Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use
Battery Type Li-ion battery, charged in camera or on separate charger
Environmental & Certifications
Operating Temperature Range -15°C to 50°C (5°F to 122°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
General
Alarm Moisture, insulation, and measurement
Dimensions [L x W x H] 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
Laser Pointer Yes; dedicated button
Packaging Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)

Accessories

  1. Remote operation button (T131171ACC)
  1. Extended Warranty for VS290, E53, E54-EST, A3x(SC), A6x(SC)
  1. FLIR InSite
  1. FLIR Screen-EST Auto Mode Firmware Upgrade (T850112)
  1. USB Type-C to USB Type-C Cable (T911705ACC)
  2. USB 2.0 A to USB Type-C cable (T911631ACC)
  1. Car Adapter (T911706ACC)
  2. Battery Charger (T199425ACC)
  3. Power Supply, 15 W/3 A (T911630ACC)
  4. Power Supply for Battery Charger (T911633ACC)
  1. Accessory Box II for Exx-Series (T199557ACC)
  2. Pouch for FLIR E-Series (T911689ACC)
  3. Hard Transport Case (T199346ACC)
