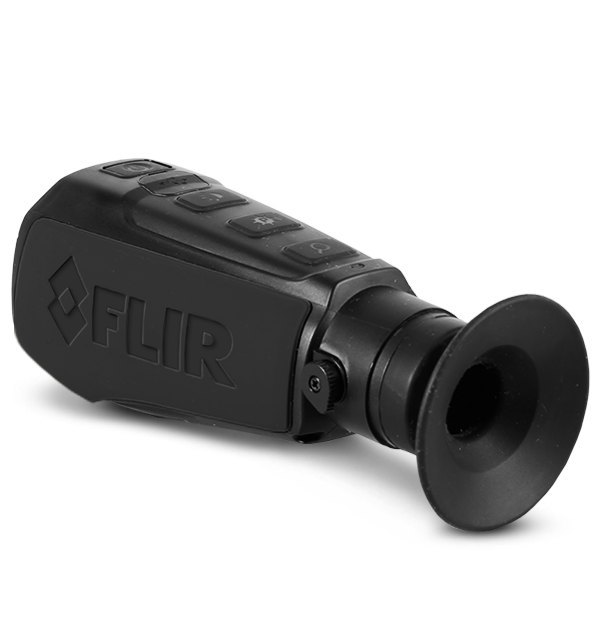

The FLIR LS-X and LS-XR handheld thermal monoculars are designed for the men and women who serve and protect. This powerful, easy-to-use imager gives officers the tactical advantage when pursuing suspects, looking for evidence, or conducting search and rescue. The LS-X and LS-XR feature high resolution displays, extended zooming capabilities, and video output. Whatever you need to see, find it with the FLIR LS-X and LS-XR.
Specifications
| Highlighted | |
|---|---|
| Thermal Sensitivity | < 50 mK @ f/1.0 |
| Sensor & Optical | |
|---|---|
| Detector Type | 336 x 256 VOx Microbolometer |
| Field of view [FOV] | 17° x 13° NTSC |
| Image Processing | FLIR Proprietary Digital Detail Enhancement ™ |
| Thermal Sensitivity | < 50 mK @ f/1.0 |
| Environmental & Approvals | |
|---|---|
| Drop Test Rating | 1 m |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C); Laser = 4°F to 122°F (-10°C to 50°C) |
| Rating | IP-67, Submersible |
| Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
| Power | |
|---|---|
| Battery Life [Operating] | > 5 Hours |
| Battery Type | Internal Li-Ion Cell |
| Start Up Time | < 1.5 seconds |
| File Storage & Communication | |
|---|---|
| Video Output | NTSC composite video Thru USB port via Custom USB to RCA cable. Output switchable to PAL via user GUI |
| UI-UX | |
|---|---|
| Black Hot_White Hot | Black Hot / White Hot / InstAlert™ |
| Brightness | Adjusts Display Brightness Setting |
| Built_in Display | 640 × 480 LCD Display |
| Image Polarity | White Hot / Black Hot / InstAlert™; Selectable |
| Laser Pointer | Red Laser Pointer |
| On_Screen Symbology | Standard |
| Polarity | White Hot / Black Hot / InstAlert™; Selectable |
| Power Button | On / Off |
| Splash Screen | Generic |
| Video Refresh Rate | < 9Hz NTSC or 60 Hz |
| Zoom Button | 2× & 4× |
| System Overview | |
|---|---|
| Package Includes | Handheld Thermal Camera,USB Power Adapter/Charger,Wrist strap, Custom Video out cable, USB Cable, Quick Start Guide, Molle bag |
| Size [L x W x H] | 6.70" × 2.31" × 2.44" |
| Warranty | 2 years standard, 3 years with product registration |
| Waveband | 7.5 - 13.5 µm |
| Physical | |
|---|---|
| Dimensions | 6.70" x 2.31" x 2.44" |
| Weight | 12 oz (340 g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Scout II - III - LS-X - LS-XR and Ocean End User Tool
Brochure
Teledyne FLIR Thermal Monoculars for Public Safety Brochure
Datasheet
LS-Series Datasheet
User Manual
LSX-R User Manual
Quick Start Guide
LSX-R Quick Start Guide
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
