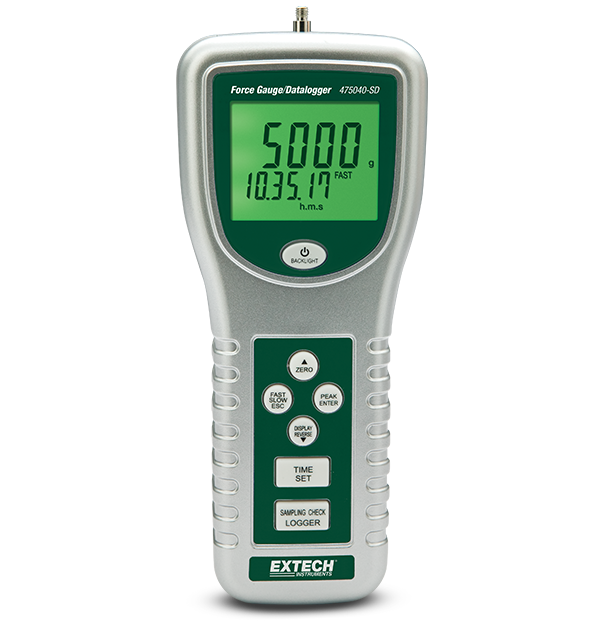

Extech 475040-SD
Digital Force Gauge/Datalogger
The Extech 475040-SD Digital Force Gauge/Datalogger dates, time stamps, and stores up to 2 M of push/pull readings on an SD card in Excel format for easy transfer to a PC. Featuring a 5 digit LCD display with peak hold, exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. It has 5 kg/176 oz/49 Newtons measurement capacity with 0.5% basic accuracy and auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel, and hook for tension), and 6 AA batteries.
Specifications
| General | |
|---|---|
| Force | 176oz, 5000g, 49 Newtons |
| Force Basic Accuracy | ±(0.4%) |
| Force Max Resolution | 0.05oz, 1g, 0.01 Newtons |
| Full Scale Detection | 2.00mm |
| Memory | SD Card |
| Overload Capacity | 10kg |
| Transducer Type | Load cell |
| Update Rate | Fast mode 0.2secs; Slow mode 0.6secs |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Power | 6 × AA batteries |
| Warranty | 2years |
| Weight | 1.4 lbs (650g) |
Resources & Support
Certification
Extech 475040-SD Declaration of Conformity
User Manual
Extech 475040 475044 User Manual GB
Datasheet
Extech 475040-SD-475044-SD Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
